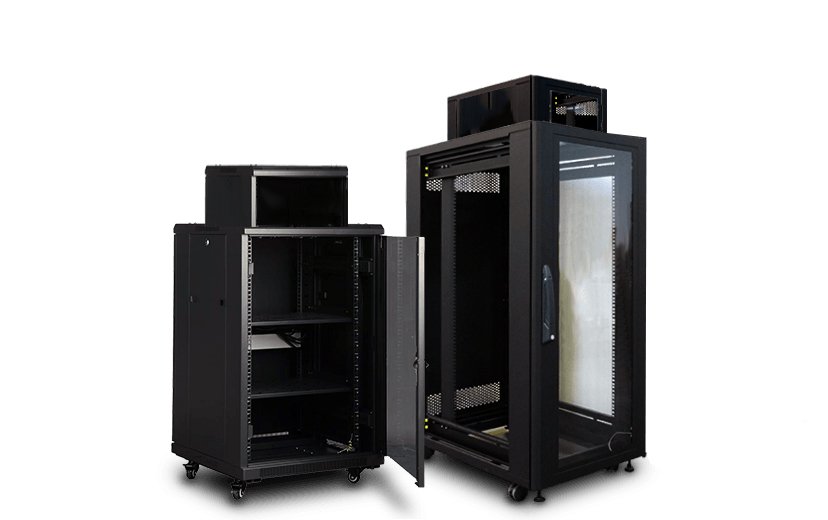

3C: Climate-Controlled Cabinets

Servicesat Climate-Controlled cabinets are used to protect servers and delicate equipment from heat, dirt, moisture, and tampering while allowing remote monitor and control. The 3C cabinets are designed and built for the lowest energy consumption. Servicesat 3C are ideal for remote locations, wiring closets, industrial environments, offices or listed locations without the building and running costs of a dedicated server room.


rac

Cool only the cabinet not the entire room!

Why choose Servicesat 3C for your server cooling?


3C: CLIMATE CONTROL CABINET

SERVICESAT 3C uses a combination of cooling fans and a self-contained cooling unit that allow the user to maintain cabinet temperature and humidity to the desired levels with minimum power consumption.

REMOTE CONTROL & MONITOR OF THE CABINET

SERVICESAT 3C implements technologies which allow the user to monitor and control the cabinet over the Internet.

TECHNICAL FEATURES
  • TEMPERATURE inside the cabinet can be set to a desired value in Celsius or Fahrenheit.

  • HUMIDITY is controlled by the Air Conditioning unit through condensation.

  • POWER CONSUMPTION for the total load of the cabinet is measured and recorded.

  • ALERTS by SMS/Email in case of system failure, temperature overload or custom triggers.

  • EXTRA features available on expansion kits and per customer needs.

  • Temperature (inside and outside), humidity and power consumption are graphed for any desired time range.


LOWER RUNNING COSTS

Lower power consumption than conventional server-cooling. Servicesat 3C reduces both your carbon footprint and your running costs. Based on inside and outside temperatures the cabinet’ s built in computer activates either a set of CFM blowers or the built in A/C unit in order to maintain the desired temperature while minimizing power consumption.

ALERT SYSTEM

Servicesat 3C is equipped with an alert system featuring SMS and Email functionality. Temperature thresholds or other triggers can be set so the user is notified when values are out of range. The end user has to provide either a SIM card, an Internet connection or both for complete functionality of the alert features.

MORE SPACE FOR YOUR SERVERS

Servicesat 3C provides enough efficient cooling for the cabinet to be at full server storage capacity with no drop in performance levels. The cabinet is suitable for all OEM servers (HP, DELL, COMPAQ etc).

BOLTED CONSTRUCTION

Provides easy on site installation and allows load weight up to 500 kilos - with correct distribution and base fitting. Complete gasket sealing for doors, panels and A/C unit. The front door is equipped with a lockable swing handle. All doors and panels are solid and equipped with modern locks to prevent tampering with the equipment inside. Available in a variety of colours.

EXPANSION KITS

Expansion kits provide extra features in both hardware and software components. Please contact us to find out more and match the right solution to your requirements.

rac

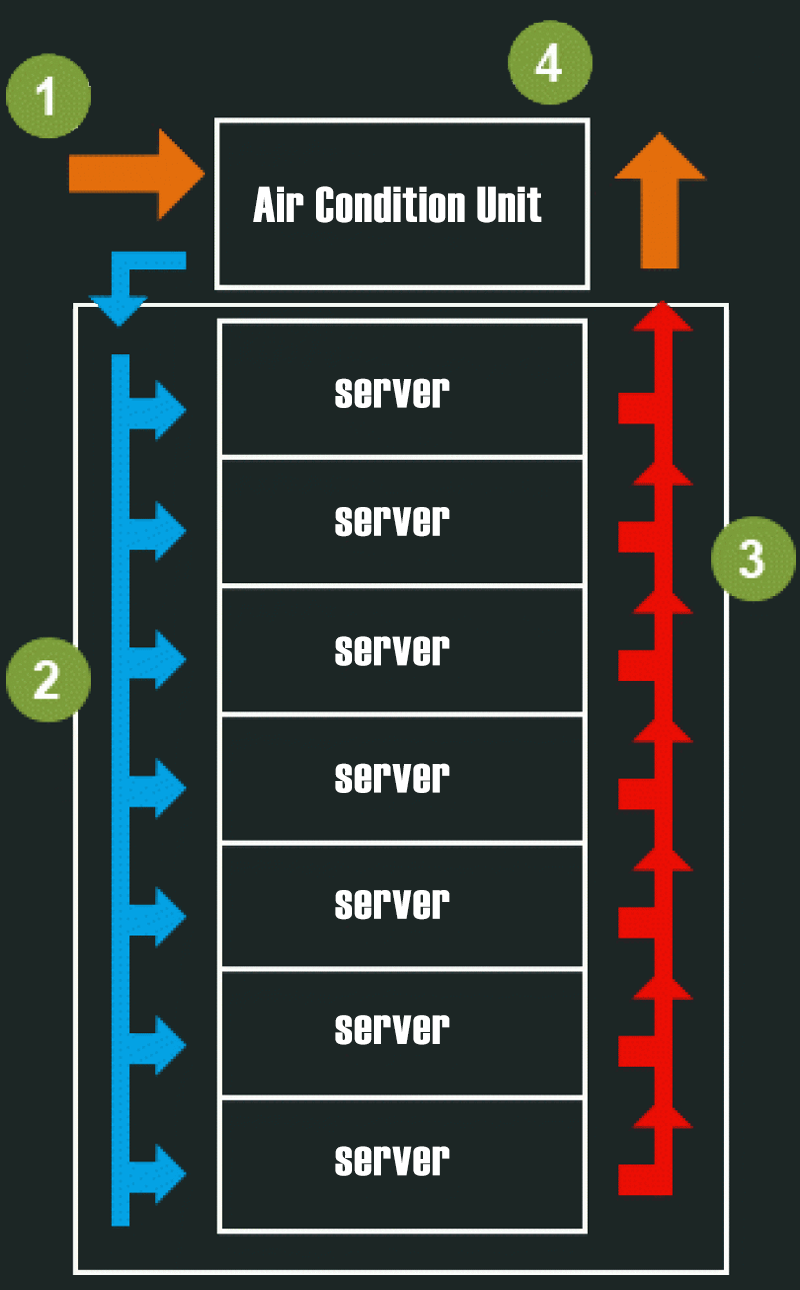

How does Servicesat 3C works?


diagram

Here is how Servicesat 3C keeps your servers working faster and more reliabily than conventional cooling:

  1. Cool air comes in from the room and if the room temperature is lower than the cabinet temperature and lower than the specified threshold, it is blown into the server intakes.

  2. If the room temperature is higher than the cabinet temperature ,cold air from the A/C unit is blown into the server air intakes.

  3. Hot air from the servers is blown into the rear of the cabinet and drawn into the A/C to be cooled and returned to the server intakes.

  4. Waste heat extracted from the cabinet is expelled as warm air from the rear of cabinet.



Where to start




Frequently asked questions



Does it take long to install?

The unit is typically installed in a matter of hours by our engineers. All you need to provide is a power point or UPS source.

Does it need sound proofing?

No. The unit operates very quietly, typically less than 65db.

Does it need external cooling?

No, as long as the room has air flow, the cooler will work.

Can I specify colours and cabinet types?

Yes. We will accommodate requirements as much as possible taking into account your corporate brand guidelines.

Does 3C need much maintenance?

No. The air filter needs to be kept clean. This is a very simple process. In addition, yearly system checks and maintenance agreements are available.
